Gyratory Crusher SG6089 Spider Arm Shield 17-501-426-001

Basic Info

Model NO.	Gyratory Crusher SG6089
Material	Cast Steel
Brand Supported	Allis-Chalmers, Fuller-Traylor, Flsmidth, etc.
Application	Quarry, Ore Mining, Cement, etc.
Installation	100% Suit
Drawings	OEM
Quality	High Wear Resistance
Sample Order	Available
After Services	Available
Transport Package	Steel Pallet
Specification	Superior MKIII
Trademark	SLon
Origin	Jinhua Zhejiang
HS Code	8474900000
Production Capacity	20000 Tons/Year

Product Description

Superior MKIII Primary Gyratory Crusher Liners And Parts

Primary Gyratory Parts by SLon®
The SLon® product range of precision machined replacement parts to suit primary gyratory crushers includes complete main shaft assemblies, main shafts, cores, spider assemblies, spider bushings, spider seals, top shell assemblies, bottom shell assemblies, eccentric bushings, shell bushings, main shaft nuts, spider rim liners, spider shields, dust seal rings, retainers, step washers, piston wear plates, pinion shafts, shell bolts and many more.

ISO9001:2015 Quality Assured
Our comprehensive range of replacement crusher parts to suit primary gyratories are certified to meet the OEM specification under our ISO quality system.

Furthermore, our premium range of primary gyratory crusher manganese steel and alloy castings are proven in mining and aggregate production applications worldwide.

Leading Metallurgy
Metallurgy has been developed in partnership with our foundry partner who is renowned as the world's leading manufacturer of crusher liners.

SLon® premium manganese is a solution annealed, water quenched, austenitic manganese steel that has been developed from the original Hadfield's manganese steel specifications, although our variation can provide unequaled toughness with good resistance to abrasion, which improves as the steelwork hardens in operation.

Brands Supported Include:Allis-Chalmers: AC30-55, 36-55, 42-65, 48-74, 54-74, 60-89, 60-109FLS Minerals/ FFE/ Fuller-Traylor (FLSmidth): 1100x1750(43"x 69"), 1300x1750(51"x 69"), 1370x1950(54"x 77"), 1600x2000(63"x 79"), 1525x2260(60"x 89"), 1525x2790(60"x 113")T-Krupp: KB54-67/ BK54-67/ KB54-75/ BK63-75/ KB63-75/ KB63-89/ KB63-114/ KB63-130Superior MKIII: SG42-65/ 50-65/ 54-75/ 62-75/ 60-89/ 70-89/ 60-110CG800i Range: CG810i / 42"x 63", CG820i / 54"x 75", CG830i / 60"x 89", CG850i / 61"x 106"

OEM No.	Part Name	Model	Weight kg
07-349-665-001	NARROW ARM LINER BOTTOMSHELL	SG4265	174.18
17-303-495-001	SPIDER ARM SHIELD ARCH SPIDER	SG4265	1408
07-354-558-001	PINIONSHAFT ARM LINER RIGHT HAND	SG5474	235.87
07-354-558-002	PINIONSHAFT ARM LINER LEFT HAND	SG5474	224.98
07-354-559-001	NARROW ARM LINER	SG5474	331.12
07-449-490-001	SPIDER ARM SHIELD STANDARD	SG5474	1769
17-502-173-001	SPIDER ARM SHIELD	SG5065
17-501-426-001	Spider Arm Shield	SG6089

The double times harding processing technology of high manganese steel The product Used life can be increased more than 30%.

Material:

Following is our normal material component,we also can customize as your request

High Manganese Casting Material Chemical composition

Material code	C	Mn	Si	Cr	P	S
ZGMn13Cr2	C:1.0~1.3	Mn:11~14	Si:0.3~0.6	Cr:1.7~2.4	P:≤0.05	S:≤0.03
ZGMn18Cr2	C:1.1~1.4	Mn:17~20	Si:0.3~0.6	Cr:1.7~2.4	P:≤0.05	S:≤0.03
ZGMn22Cr2	C:1.1~1.4	Mn:20~24	Si:0.3~0.6	Cr:1.7~2.4	P:≤0.05	S:≤0.03

Products Exhibition:

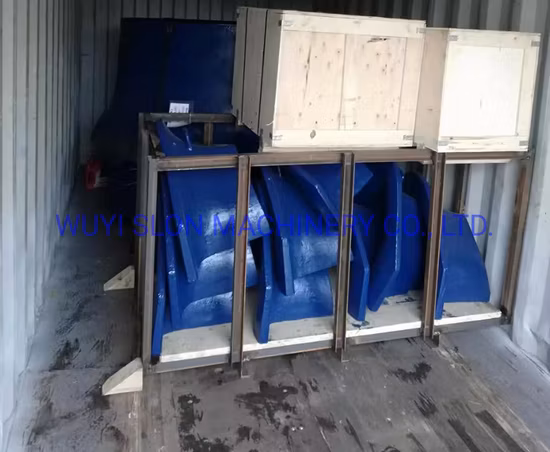

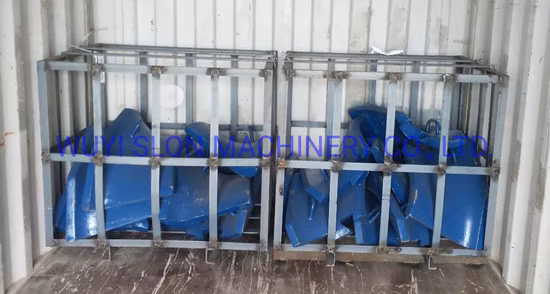

Packaging & Shipping

Packing: Steel pallet, comply with foreign trade standard.Shipping: By Container.

Company Information:
WuYi Slon Machinery Co;Ltd is a professional manufacturer in wear parts.At Wear and Spare Parts we offer an extensive range of crusher wear parts for all jaw, cone and impact crushers of those Chinese Brand or Foreign Brand. All of our crusher wear parts are of the highest specification and are continuously tested gobally to make sure they are of premium quality.Wear and Spare Parts offer all hammers ,track shoe and blow bars, as well as extensive range of liner plates for all impact crushers on the market, meaning that for all your crusher wear part requirements, Wear and Spare parts offer a first class service to all our Global Customers.

FAQ
Production process:

1.
Q: What kinds of products do you offer?
A: SLon Machinery provided parts are mainly related to your machine. It ranges from the drill rod,excavator buckets and wheel loaders, crusher spare parts, construction machinery parts,brass bush, conveyor and screen spare parts, beneficial equipment spare parts, grinding mill spare parts, machining spare parts and other customized spare parts.
2.
Q: What kind of materials are you familiar with?
A: We are familiar with carbon steel, alloy steel, standard wearing plate, high material steel, high chrome steel, casting iron, and bronze.We have begun to research ceramic insert material technology.
3.
Q: Can you use foundry machining castings ?
A: Yes, the CNC machine can machine material hardness from HB200 to HRC62.The maximum
machining length is 8m and maximum width is 4m.
4.
Q: What information do we need to provide to you in order to confirm our parts order?
A: We work with technical drawings for any non-standard products. If the order is for standard parts,you only have to provide us with the part number so we may define the parts of the order.
5.
Q: Would you like to accept factory inspection?
A: We are greatly welcome to our factory for your inspection
6.
Q: Why you have to choose us from multiple vendors?
A: We have an increasing presence in the global market for more than 15 years-Reputation.
7.
Q: How do you judge sufficient components for our parts?
A: As long as the material is chosen, we shall strictly manufacture the parts according to standard.
8.
Q: Except for your products, do you offer some other services or new business opportunities?
A: Yes, we provide lots of service to you as you can see on our service. Slon Machinery has lot of new ideas for working with you and keeping your business moving forward.
